slimframeless tecnico MOD

Suitable for floor level installationSharp Effect IP20

Slim step led light for interiors

Recessed light

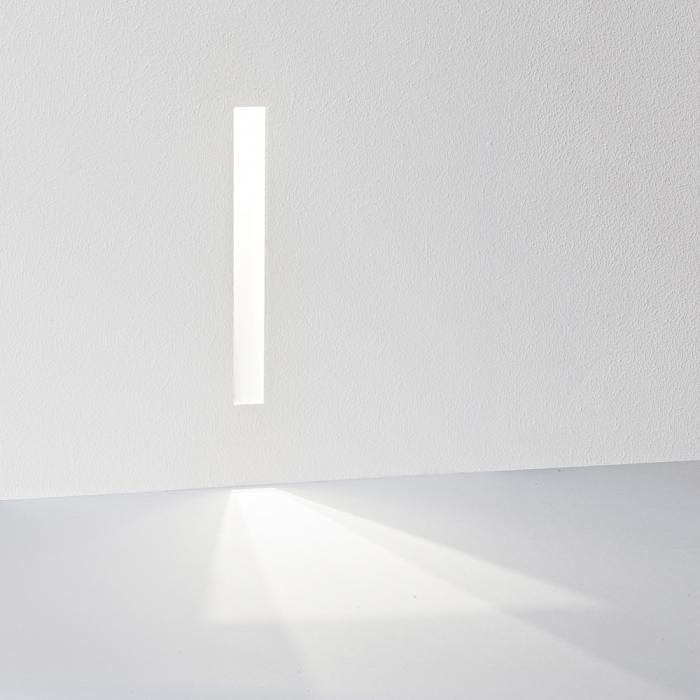

Recessed led step light for interior, updated with the latest architectural trends of interior design. Metal painted in matt white finish. Slim and minimal design, frameless for a total recessed solution in the plasterboard (not suitable for installation on brick wall). It creates a distinctive beam of light in double trapezoidal shape.



TECHNICAL DATA

SYMBOLS

PHOTOMETRIC CURVE

T036 LA K3 STEP LIGHT,

LED module 2 CREE/SEOUL 2,6W 24V

3000K, 200lm



T036 LA K4 STEP LIGHT,

LED module 2 CREE/SEOUL 2,6W 24V

4000K, 220lm

 LED INSIDE Classe III Protection index IP20 Led CE marking Inflammable surfaces (F)
LED INSIDE Classe III Protection index IP20 Led CE marking Inflammable surfaces (F)

COLORS

BOX:
ral customization

NOTES

Power supply not included. It is recommended the use of certified power supplies suitable for this product. For specific requirements please refer to the technical instructions.



Our technical department is available to provide assistance for interfacing our product with home & building automation or for the installation of electronic control systems oriented to energy saving with presence and/or light sensors.

ACCESSORIES / COMPONENTS
driver

Driver (see datasheet)
Dimmer

TE040
Dimmer 24Vdc 6A (192W)

DOCUMENTATION

Technical Drawing

Assembly Instructions

Data Sheet

Electrical Assembly Instructions
