Fessura 120

Down-lightUp-lightQuick assembling

Fessura 120 brickwall

Recessed light

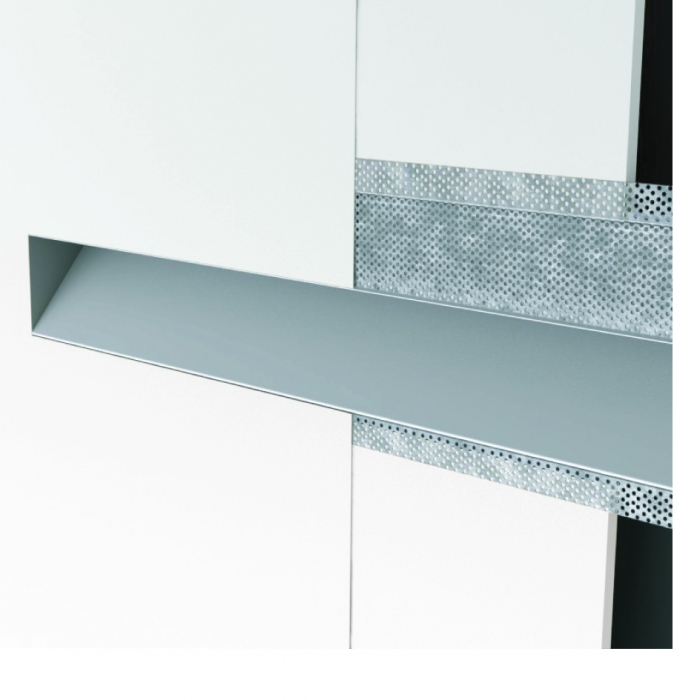

Recessed wallwasher for interiors with indirect diffused light. Metal white painted inside. The product is installed, coated and smoothed at the same grade of the surrounding wall. The electrified portion is mounted afterwards. The product is available in lengths 1200mm, with different electrifications and powers. Available for installation on brickwall without the use of a recessede box. The metacrilate diffuser (A) is recommended for vertical installation only.



TECHNICAL DATA

SYMBOLS

PHOTOMETRIC CURVE

T038FC INCASSO WALLWASHER

1x28W T5 HE

230V 2900lm

 Classe I Energy saving Protection index IP20 CE marking Inflammable surfaces (F)

T038FC A  RECESSED LIGHT WALLWASHER

1x28W T5 HE

230V 2900lm

 Classe I Energy saving Protection index IP20 CE marking Inflammable surfaces (F)

T038FD RECESSED LIGHT WALLWASHER

1x54W T5 HO

230V 5000lm

 Classe I Energy saving Protection index IP20 CE marking Inflammable surfaces (F)

T038FD A RECESSED LIGHT WALLWASHER

1x54W T5 HO

230V 5000lm

 Classe I Energy saving Protection index IP20 CE marking Inflammable surfaces (F)

COLORS

BOX:
ral customization

NOTES

Ballast included. On request dimmable DALI power supply.



Our technical department is available to provide assistance for interfacing our product with home & building automation systems or for the installation of electronic control systems oriented
to energy saving with presence and/or light sensors

ACCESSORIES / COMPONENTS
Polystyrene protection for buider’s yard

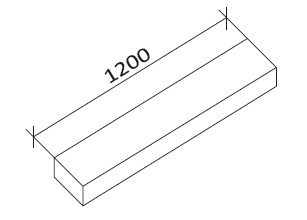

TC012
Polystyrene protection for buider’s yard
driver image

TE023
dimmable kit 1x28/54W (see electrical connection)

DOCUMENTATION

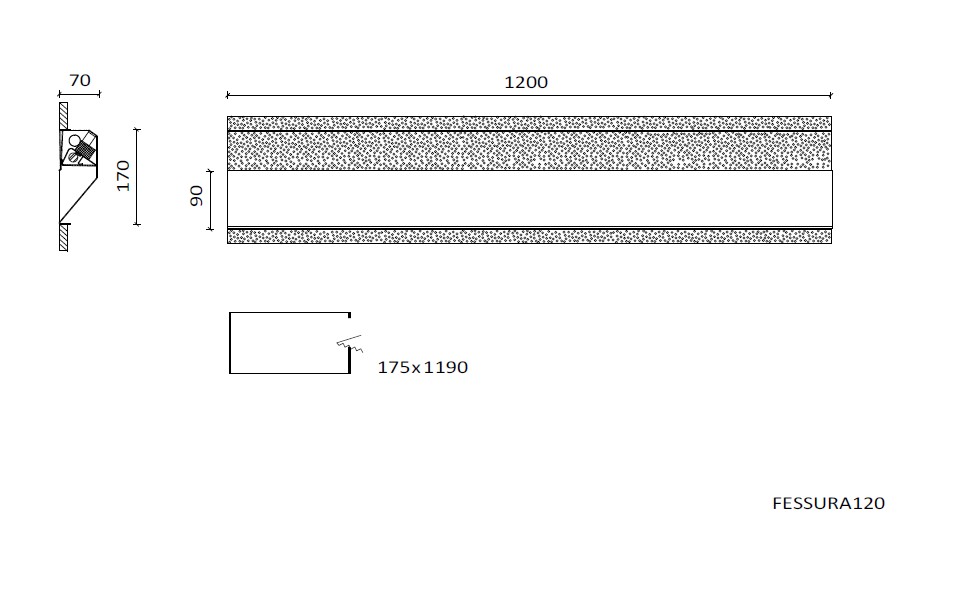

Technical Drawing

Assembly Instructions

Data Sheet

Electrical Assembly Instructions
