Stripe system frameless T5

Stripe system frameless T5 normal

Recessed light

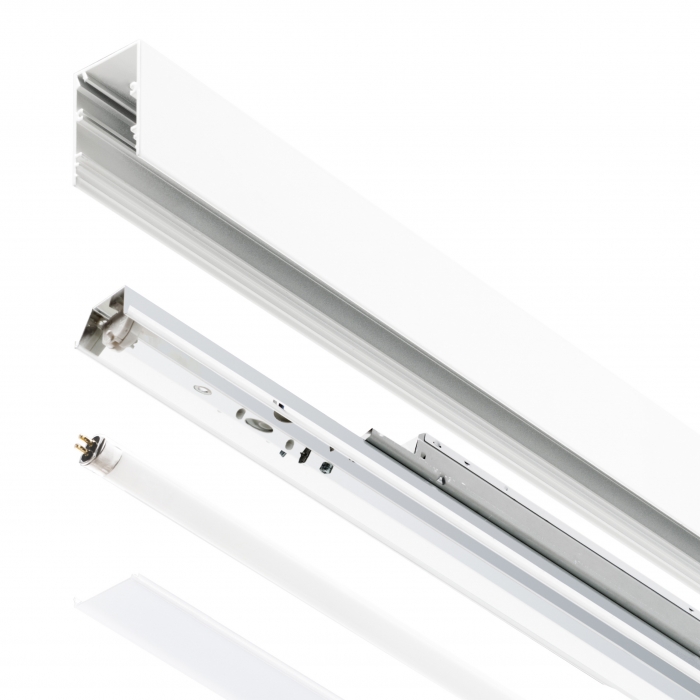

Recessed frameless system made up of electrified modules, aluminium profiles without edges designed for housing normal T5 lamps, and PMMA diffusers or darklight screen. Available in the brushed natural aluminium and shiny white finishings. The T5 lamps are available in two versions:

  HE to maximize the luminous efficiency and get a constant luminance even by different elements with several lengths and powers;

 HO to obtain the maximum luminous flux.  The use of HO lamps is advised for installation of several elements with the same power.



TECHNICAL DATA

SYMBOLS

PHOTOMETRIC CURVE

TS514 FA RECESSED,

1x14W G5 230Vac T5-HE

1350lm (1,7 cd/cmq) L:585

 Classe I Energy saving Protection index IP43 CE marking Inflammable surfaces (F)

TS514 FB RECESSED,

1x24W G5 230Vac T5-HO

2000lm (2,5 cd/cmq) L:585mm

 Classe I Energy saving Protection index IP43 CE marking Inflammable surfaces (F)

TS514 FC RECESSED,

1x21W G5 230Vac T5-HE

2100lm (1,7 cd/cmq) L:885mm

 Classe I Energy saving Protection index IP43 CE marking Inflammable surfaces (F)

TS514 FD RECESSED LIGHT,

1x39W G5 230Vac T5-HO

3500lm (2,8 cd/cmq) L:885mm

 Classe I Energy saving Protection index IP43 CE marking Inflammable surfaces (F)

TS514 FE RECESSED LIGHT,

1x28W G5 230Vac T5-HE

2900lm (1,7 cd/cmq) L:1185mm

 Classe I Energy saving Protection index IP43 CE marking Inflammable surfaces (F)

TS514 FF RECESSED LIGHT,

1x54W G5 230Vac T5-HO

5000lm (2,9 cd/cmq) L:1185mm

 Classe I Energy saving Protection index IP43 CE marking Inflammable surfaces (F)

TS514 FG RECESSED LIGHT,

1x35W G5 230Vac T5-HE

3650lm (1,7 cd/cmq) L:1485mm

 Classe I Energy saving Protection index IP43 CE marking Inflammable surfaces (F)

TS514 FH RECESSED LIGHT,

1x49W G5 230Vac T5-HO

4900lm (2,3 cd/cmq) L:1485mm

 Classe I Energy saving Protection index IP43 CE marking Inflammable surfaces (F)

TS514 FI RECESSED LIGHT,

1x80W G5 230Vac T5-HO

7000lm (3,2 cd/cmq) L:1485mm

 Classe I Energy saving Protection index IP43 CE marking Inflammable surfaces (F)

COLORS

BOX:

FRAME:

CUSTOMIZATION:
ral customization

ACCESSORIES / COMPONENTS

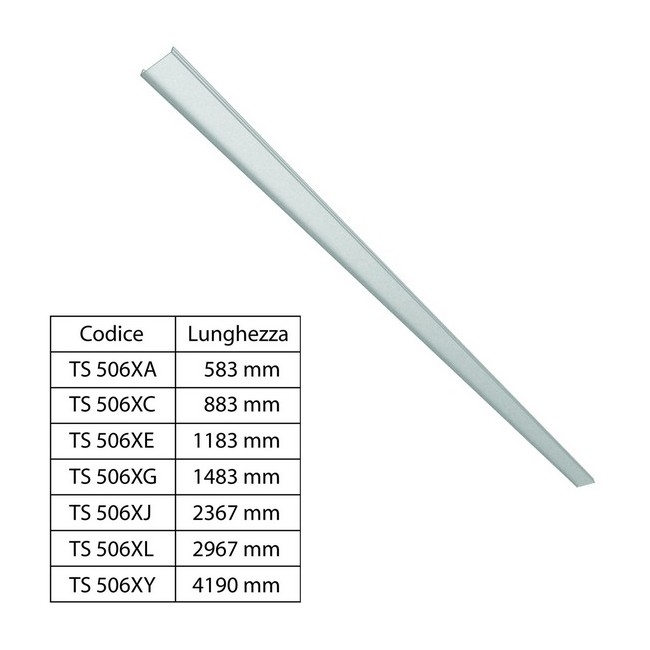

Diffuser

TS 506XA e vedi foto
Diffuser

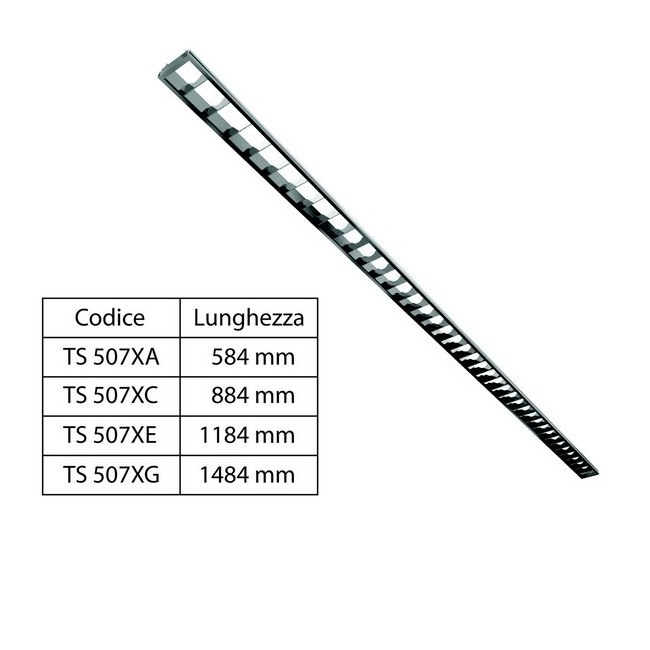

darklight

Darklight screen

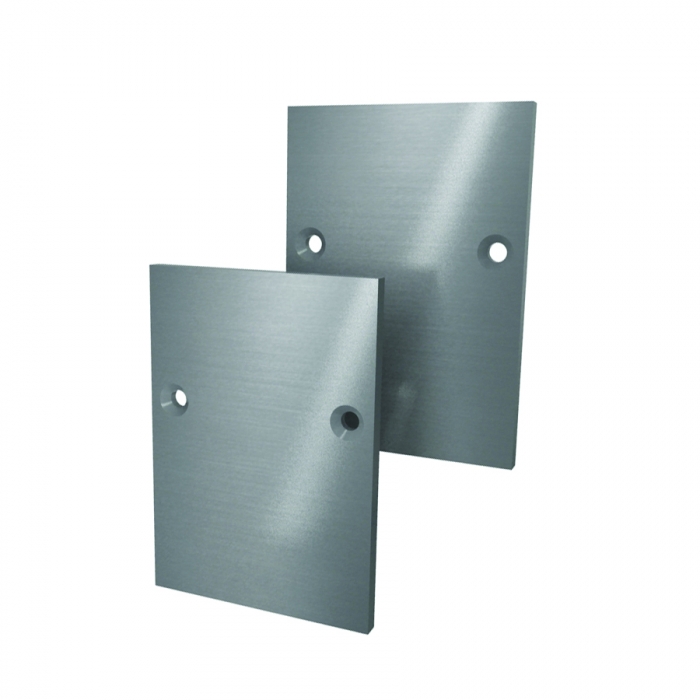

End caps kit with edges (2pcs.)

TS505 07 (bianco) TS505 31 (alluminio)
TS505 07 White TS505 31 Aluminium

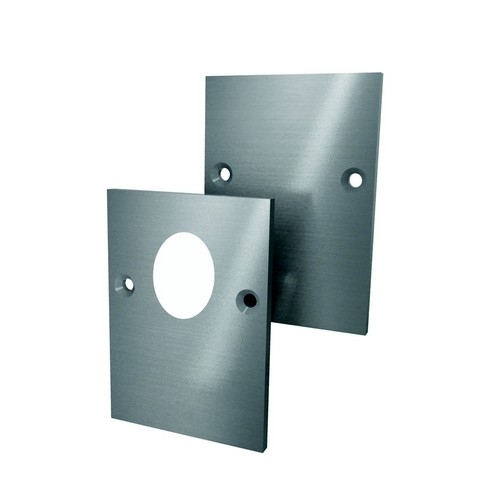

End caps for brickwall

TS516 07 (bianco) TS516 31 (alluminio)
TS516 07 (white) TS516 31 (aluminium)

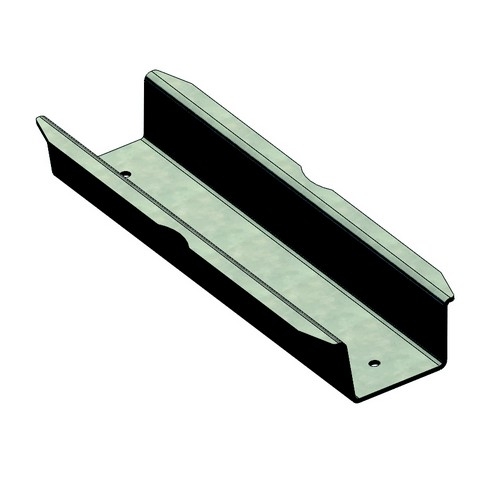

Metal junction bar

TS508
Metal junction bar
Screen TS 510XA TS 510XC TS 510XE TS 510XG

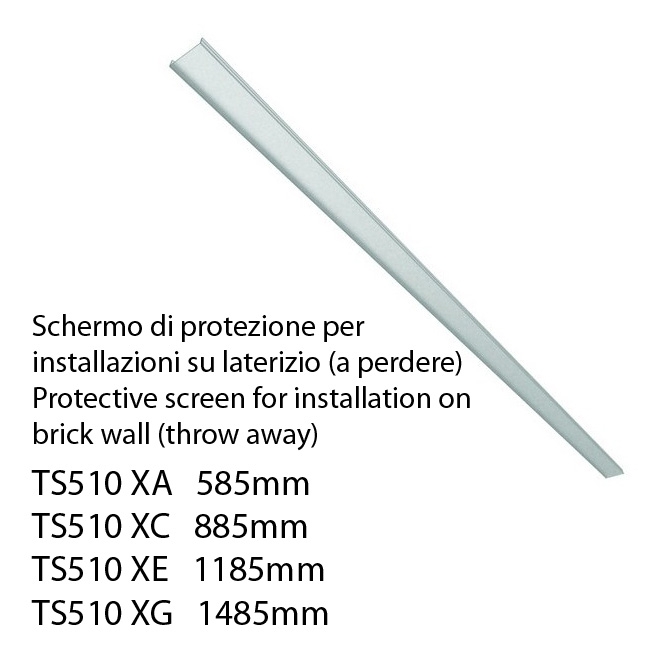

Protective screen for Brick wall

emergency kit

emergency kit (see electrical connection)
dimmable kit

dimmable kit (see electrical connection)

DOCUMENTATION

Technical Drawing

Assembly Instructions

Data Sheet

Electrical Assembly Instructions






back to previous page »
