Riflesso Trik Trak

Easy bulb replacement

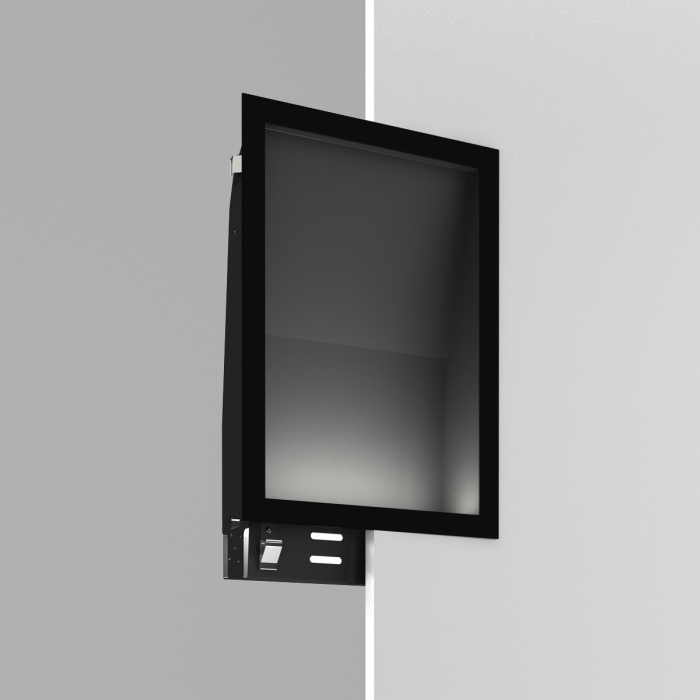

Riflesso Trik Trak 35 fluo recessed

Recessed light

Recessed light fitting for internal diffused light. Metal painted entirely white, black, grey and in polished or brushed chrome with grey interior. Supplied with a system that allows the replacement of the bulb without disassembling the body of the fitting itself. Usable on plasterboard or brick, with special formwork.



TECHNICAL DATA

SYMBOLS

PHOTOMETRIC CURVE

T008 FD RECESSED 1x26 32 42W Gx24 q-3-4

 Classe I Energy saving Protection index IP20 CE marking Inflammable surfaces (F)

COLORS

BOX:

FRAME:

CUSTOMIZATION:
ral customization

NOTES

ACCESSORIES / COMPONENTS

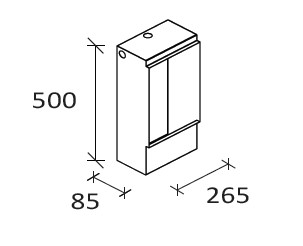

Recessed box

TC005
Recessed box
emergency kit

TE045
emergency kit (see electrical connection)

DOCUMENTATION

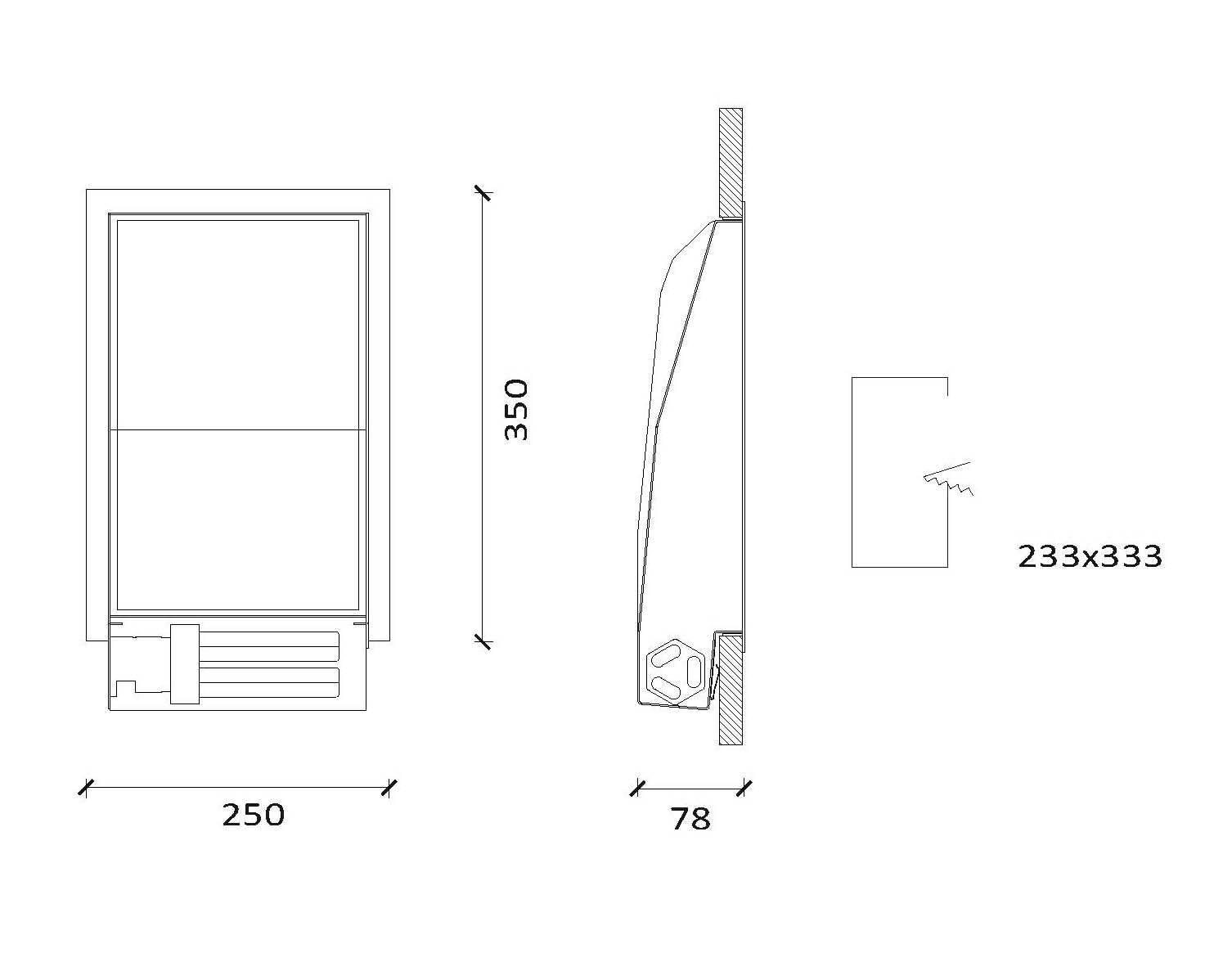

Technical Drawing

Assembly Instructions

Data Sheet

Electrical Assembly Instructions
